Understanding Soil Types for Drilled Piers

Combined ShapeCreated with Sketch.

Drilled piers are versatile foundation solutions widely used in construction to provide stability and support. One critical factor determining the success of drilled piers is the soil in which they are installed. Understanding soil types and their impact on foundation stability is essential for choosing the right foundation method. This article explores the relationship between soil types, foundation stability, and how drilled piers can be adapted to various geotechnical conditions.

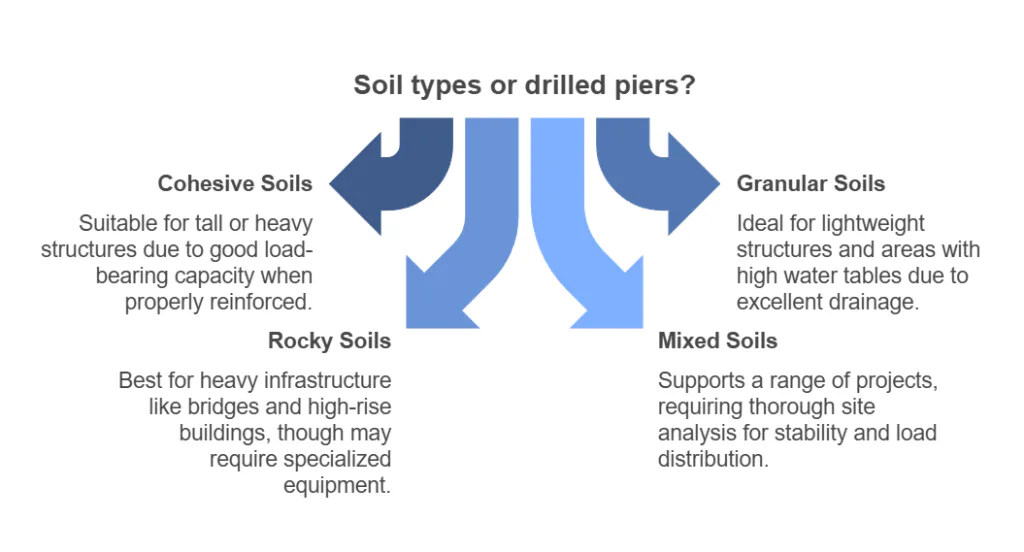

Overview of Soil Types

The behavior and composition of soil play a pivotal role in the design and construction of drilled piers. Below are the primary soil types encountered in construction projects and their defining characteristics:

1. Cohesive Soils (Clay)

  • Characteristics: High moisture retention, plasticity, and significant shrink-swell potential.
  • Behavior: Clay soils can expand when wet and contract when dry, leading to movement that may stress foundations.
  • Applications: Suitable for tall or heavy structures due to good load-bearing capacity when properly reinforced.

2. Granular Soils (Sand and Gravel)

  • Characteristics: Non-cohesive, excellent drainage, and relatively stable under load.
  • Behavior: Sand and gravel provide good frictional resistance but are prone to shifting under dynamic loads or vibrations.
  • Applications: Often used for lightweight structures and areas with high water tables due to their drainage capabilities.

3. Rocky Soils

  • Characteristics: High strength and stability, limited water absorption, and minimal compressibility.
  • Behavior: Typically offers excellent load-bearing capacity but may require specialized drilling equipment.
  • Applications: Ideal for heavy infrastructure like bridges and high-rise buildings.

4. Mixed Soils

  • Characteristics: A combination of cohesive and granular materials, with variable properties.
  • Behavior: Requires thorough site analysis to determine stability and load distribution.
  • Applications: Versatile, supporting a range of projects from residential to industrial construction.

Impact on Foundation Stability

Soil type directly influences the stability of the foundation and the performance of drilled piers. Here are the key ways in which soil affects the construction and longevity of foundations:

1. Load-Bearing Capacity

The ability of soil to support structural loads is critical. Drilled piers rely on:

  • End Bearing: Transferring load directly to a stable layer, such as bedrock or dense soil.
  • Skin Friction: Utilizing the resistance between the pier surface and surrounding soil to distribute weight.

Clay soils, for instance, can provide substantial skin friction, while sandy soils often depend more on end bearing.

2. Settlement Behavior

Soil compression or movement can cause structures to settle unevenly. Drilled piers help mitigate this by anchoring into deeper, more stable layers. However, expansive clay soils may still pose a risk of uplift, necessitating additional design considerations.

3. Water Table and Drainage

High water tables in sandy or silty soils can lead to instability. Properly designed drilled piers, often with casing or slurry stabilization, can counteract these effects, ensuring the borehole remains intact during construction.

4. Soil Stability During Drilling

Loose or collapsing soils, such as poorly graded sands or silts, can complicate the drilling process. Techniques like casing or bentonite slurry are often employed to stabilize the borehole during construction.

Matching Piers to Soil Characteristics

Adapting drilled piers to specific soil conditions ensures structural integrity and longevity. Below are tailored approaches for each soil type:

1. Cohesive Soils

  • Design Considerations: Reinforcement is essential to counteract lateral and uplift forces caused by soil movement.
  • Construction Techniques:
    • Use of belled piers to distribute load over a wider area.
    • Installation of deep piers to bypass unstable upper layers.
  • Applications: Effective for high-rise buildings and heavy industrial projects in clay-rich areas.

2. Granular Soils

  • Design Considerations: Focus on end-bearing capacity to compensate for low skin friction.
  • Construction Techniques:
    • Use of continuous flight auger piles to minimize soil disturbance.
    • Proper compaction of surrounding soil to enhance stability.
  • Applications: Suitable for bridges and retaining walls in sandy regions.

3. Rocky Soils

  • Design Considerations: Precision in drilling and reinforcement placement is crucial to maximize load transfer to solid rock.
  • Construction Techniques:
    • Use of rock-socketed piers that penetrate the rock layer for exceptional load-bearing.
    • Customized drilling rigs designed for hard materials.
  • Applications: Preferred for infrastructure in mountainous or rocky terrains.

4. Mixed Soils

  • Design Considerations: Comprehensive geotechnical analysis is required to address variable soil behavior.
  • Construction Techniques:
    • Combination of casing and slurry stabilization to manage unpredictable soil layers.
    • Layer-specific reinforcement and concrete placement strategies.
  • Applications: Ideal for urban areas with diverse soil profiles.

Understanding soil types is critical to the successful design and implementation of drilled piers. Each soil type presents unique challenges and opportunities, requiring tailored solutions to ensure stability and performance. Whether dealing with cohesive clays, granular sands, or mixed soils, adapting drilled piers to specific geotechnical conditions can optimize structural integrity and safety.

By carefully analyzing soil characteristics and employing the appropriate construction techniques, engineers can harness the versatility of drilled piers to support a wide range of construction projects. For assistance with drilled pier foundations, consult with experts who specialize in geotechnical solutions tailored to your project’s unique needs.
