Selecting the right foundation is one of the most critical decisions in any construction project. Among the many options, drilled piers and other foundation systems each have distinct advantages and applications. This article provides an overview of foundation types, highlights the differences between drilled piers and piles, and discusses key decision factors to help you make informed choices for your construction project.
Foundation Types
Foundations are categorized into two primary types: shallow foundations and deep foundations. The choice between these options depends on the project’s load requirements, soil conditions, and budget.
1. Shallow Foundations
Shallow foundations transfer structural loads to the surface or near-surface layers of soil. They are typically used for lighter structures in areas with stable soil conditions. Common types include:
- Spread Footings: Distribute loads over a wide area to minimize soil pressure.
- Mat Foundations: Large slabs used for expansive or heavy structures with uniform soil support.
- Strip Foundations: Continuous strips supporting walls or narrow buildings.
Advantages:
- Lower cost due to minimal excavation.
- Faster construction timelines.
Limitations:
- Unsuitable for poor or unstable soils.
- Limited load-bearing capacity for heavy structures.
2. Deep Foundations
Deep foundations extend into deeper soil layers or rock, providing stability for heavy loads or challenging soil conditions. They include:
- Drilled Piers (Drilled Shafts): Cylindrical structures created by drilling into the ground and filling with reinforced concrete.
- Driven Piles: Long, slender columns driven into the ground using hammers or vibratory equipment.
- Auger Cast Piles: Similar to drilled piers but use a continuous auger to excavate and fill with concrete simultaneously.
Advantages:
- Can handle heavy loads.
- Suitable for areas with weak or unstable surface soils.
Limitations:
- Higher costs due to specialized equipment and labor.
- Longer construction timelines compared to shallow foundations.

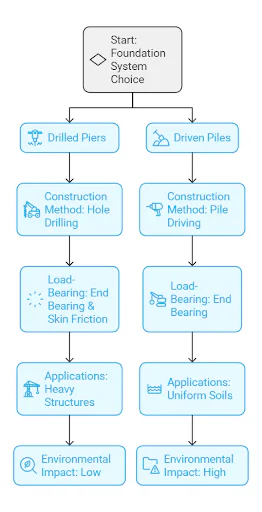

Drilled Piers vs. Piles
Drilled piers and driven piles are two of the most commonly used deep foundation systems. While both serve to transfer loads to deeper, more stable layers, they differ in design, construction methods, and applications.
1. Construction Method
- Drilled Piers:
- A hole is drilled into the ground using augers or rotary rigs.
- Steel reinforcement is placed inside the hole.
- Concrete is poured to form the pier.
- Suitable for urban environments due to minimal vibration and noise.
- Driven Piles:
- Pre-manufactured piles (steel, concrete, or wood) are driven into the ground using hammers or vibratory drivers.
- Requires heavy machinery and generates significant noise and vibration.
- Installation can disturb surrounding soil and structures.
2. Load-Bearing Mechanisms
- Drilled Piers:
- Use a combination of end bearing (transferring load to stable strata) and skin friction (resistance along the pier’s surface).
- Effective for both vertical and lateral loads, making them ideal for structures exposed to wind or seismic forces.
- Driven Piles:
- Primarily rely on end bearing, though some friction piles exist.
- Best suited for soils with uniform density.
3. Applications
- Drilled Piers:
- Ideal for large, heavy structures like bridges, high-rise buildings, and retaining walls.
- Suitable for variable or difficult soil conditions, including clay, sand, and rock.
- Flexible depth customization to meet specific project needs.
- Driven Piles:
- Commonly used for highways, docks, and industrial buildings.
- Best for sites with uniform, dense soils or waterlogged areas.
4. Environmental Impact
- Drilled Piers:
- Lower environmental impact due to reduced noise and vibration.
- Generates soil spoils that need proper disposal.
- Driven Piles:
- Greater environmental disturbance due to noise, vibration, and soil displacement.
- Can cause settlement or structural impacts on adjacent properties.
Decision Factors for Construction Projects
Selecting the right foundation system involves evaluating multiple factors to ensure structural safety, cost-effectiveness, and environmental compatibility.
1. Soil Conditions
- Drilled Piers: Adaptable to diverse soil types, including loose, expansive, or rocky conditions.
- Driven Piles: Best suited for dense or waterlogged soils with minimal variability.
Tip: Conduct geotechnical analysis to determine soil composition and load-bearing capacity.
2. Load Requirements
- Drilled Piers: Handle both heavy vertical and lateral loads, making them ideal for large structures in areas with wind or seismic activity.
- Driven Piles: Effective for vertical loads but less versatile for lateral or dynamic forces.
Example: A high-rise building in an earthquake-prone area would benefit from drilled piers for added lateral load resistance.
3. Environmental Considerations
- Drilled Piers: Minimized noise and vibration make them suitable for urban or environmentally sensitive areas.
- Driven Piles: High noise and vibration levels may disrupt nearby ecosystems or structures.
Example: A project in a densely populated area would favor drilled piers to avoid complaints and potential legal challenges.
4. Construction Speed
- Drilled Piers: Require more time due to drilling, reinforcement, and concrete curing.
- Driven Piles: Faster installation, particularly for projects with repetitive pile driving needs.
Example: For a tight construction timeline, driven piles may be advantageous despite their limitations.
5. Cost and Budget
- Drilled Piers: Typically more expensive due to specialized equipment and labor.
- Driven Piles: Lower initial cost but may incur additional expenses if soil variability causes pile rejection or damage.
Tip: Compare total project costs, including materials, labor, and potential long-term maintenance.
6. Site Accessibility
- Drilled Piers: Require less space and are easier to mobilize in constrained sites.
- Driven Piles: Need larger areas for equipment setup and operation.
Example: In a crowded urban location with limited access, drilled piers are more practical.
Both drilled piers and driven piles offer valuable solutions for deep foundations, but their suitability depends on the specific requirements of your project. Drilled piers provide flexibility, superior load-bearing capabilities, and reduced environmental impact, making them ideal for complex or urban sites. On the other hand, driven piles are cost-effective and faster to install, especially in uniform soils.
Understanding the characteristics of each foundation type and the factors influencing your construction needs will help you make an informed decision. Consulting with foundation experts ensures that your project achieves long-term stability and success. Whether your site demands the versatility of drilled piers or the efficiency of driven piles, careful planning and execution are key to building a strong foundation.
