Structural foundation Design are the bedrock of any construction project, providing the essential stability and durability needed to support a building. While much attention is paid to the design and materials of the foundation itself, the soil beneath it is equally critical. Soil analysis plays a pivotal role in determining the suitability of a site for construction and directly impacts the safety, stability, and longevity of the structure.
In this blog post, we explore the significance of soil analysis in foundation design, examine various soil types and their implications, discuss techniques for assessing soil bearing capacity, and review case studies of foundation failures caused by inadequate soil understanding.
Introduction to Soil Analysis
Soil analysis is the process of evaluating soil properties to understand how it will interact with a foundation. This essential step in structural foundation design involves studying the soil’s load-bearing capacity, moisture content, compressibility, and shear strength. Without thorough soil analysis, even the most well-designed foundations can be rendered ineffective.
The interaction between soil and foundation—known as soil-structure interaction—is fundamental to ensuring a stable and safe building. Poor soil conditions can lead to settlement, cracking, or even structural failure. Conversely, well-analyzed and prepared soil ensures that the foundation performs as intended, supporting the structure safely for decades.
Types of Soil and Their Impact
Different soil types exhibit varying characteristics that influence foundation performance. Below are the most common types and their effects on structural foundations:
- Clay
- Properties: High compressibility and low permeability; expands when wet and shrinks when dry.
- Impact: Causes uneven settlement, resulting in cracks and instability in structures.
- Mitigation: Requires moisture control and deep foundation solutions like piles.
- Sand
- Properties: Good drainage, low compressibility, but prone to shifting under load.
- Impact: Provides adequate support for light to moderate loads if compacted properly.
- Mitigation: Compaction and stabilization techniques are often employed.
- Silt
- Properties: Fine particles with moderate compressibility; retains water, leading to instability.
- Impact: Susceptible to frost heave and liquefaction during seismic activity.
- Mitigation: Stabilization using admixtures or switching to deeper foundation types.
- Rock
- Properties: Excellent load-bearing capacity and minimal settlement.
- Impact: Provides a strong foundation base, though excavation can be challenging and costly.
- Mitigation: Requires specialized equipment for drilling or blasting.
- Organic Soil
- Properties: Contains decomposed plant material; highly compressible and weak.
- Impact: Unsuitable for construction; must be removed or stabilized.
- Mitigation: Excavation and replacement with engineered fill.
Understanding these soil types and their behaviors is critical to selecting the right foundation type, whether shallow (e.g., spread footings) or deep (e.g., piles, caissons).

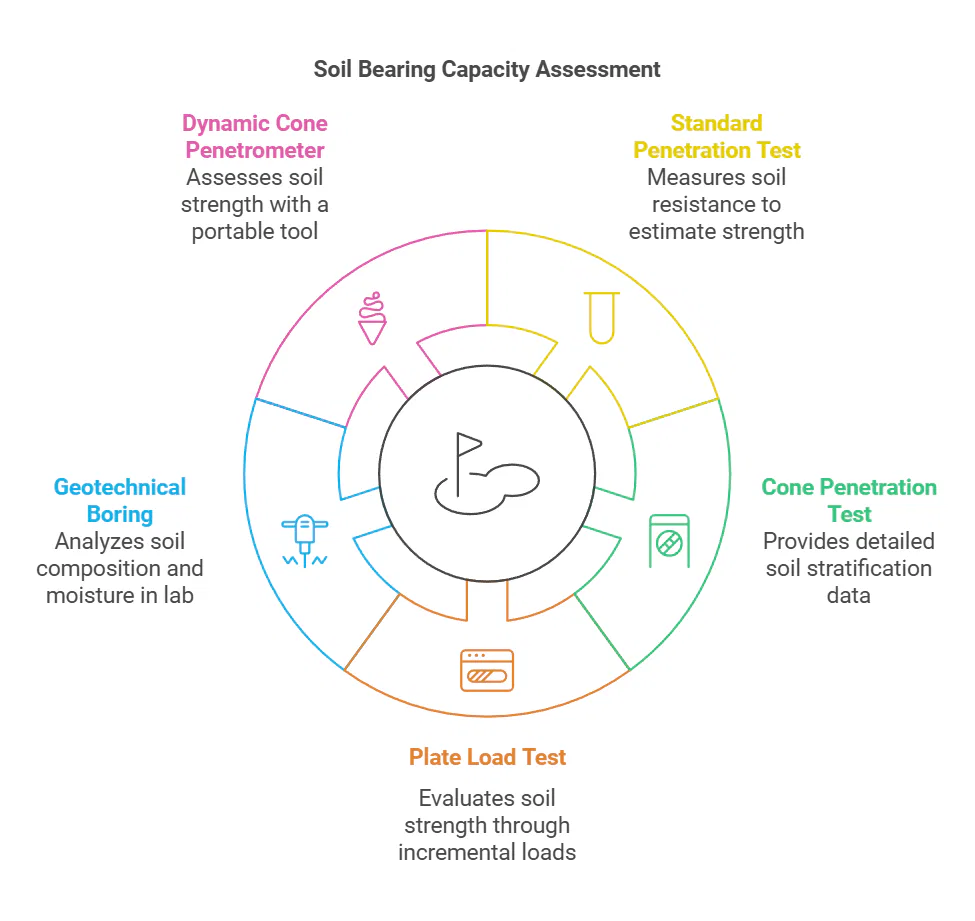

Techniques for Assessing Soil Bearing Capacity
Soil bearing capacity is the ability of soil to support the loads imposed by a foundation. Engineers employ various methods to evaluate this critical property:
- Standard Penetration Test (SPT)
A widely used field test that measures the resistance of soil to penetration by a split spoon sampler. The resulting data helps estimate soil strength and consistency. - Cone Penetration Test (CPT)
A cone-shaped instrument is pushed into the ground to measure resistance. CPT provides detailed data on soil stratification and bearing capacity. - Plate Load Test
This test evaluates soil strength by applying incremental loads to a steel plate and measuring settlement. It is especially useful for determining the load-bearing capacity of shallow foundations. - Geotechnical Boring
Core samples are extracted to study soil composition, density, and moisture content in a laboratory. This technique offers precise insights into soil properties. - Dynamic Cone Penetrometer (DCP)
A portable tool for assessing soil strength by measuring the penetration rate of a cone dropped from a standard height. It is often used in field assessments for quick results.
These techniques, combined with geotechnical investigations, enable engineers to design foundations tailored to the site’s unique conditions.
Case Studies of Failed Foundations Due to Poor Soil Understanding
Several high-profile foundation failures highlight the catastrophic consequences of neglecting proper soil analysis:
1. Leaning Tower of Pisa (Italy)
- Issue: Built on a mix of clay, sand, and silt, the soil’s poor load-bearing capacity caused uneven settlement.
- Outcome: The structure began tilting shortly after construction. Recent stabilization efforts involved soil extraction to counterbalance the tilt.
2. Millennium Tower (San Francisco, USA)
- Issue: The foundation was not anchored to bedrock, relying instead on compacted sand and clay.
- Outcome: Excessive settlement and tilting of the building, prompting costly repairs and lawsuits.
- Lesson: Deep foundations like piles or caissons would have prevented this issue.
3. Kansai International Airport (Japan)
- Issue: Built on reclaimed land, inadequate understanding of soil settlement caused the artificial island to sink.
- Outcome: Continuous sinking requires ongoing soil stabilization and foundation adjustments.
- Lesson: Accurate settlement analysis and proper site preparation are essential for large-scale projects.
These cases underscore the importance of thorough soil investigations and informed decision-making during foundation design.
Soil analysis is a cornerstone of successful structural foundation design. By understanding the properties and behavior of soil, engineers can make informed decisions to mitigate risks, optimize foundation performance, and ensure the longevity of structures. Techniques like SPT, CPT, and plate load tests provide invaluable data, while lessons from past failures emphasize the importance of comprehensive geotechnical investigations.
