Choosing the Right Foundation Type: Shallow vs. Deep Foundations

The foundation of a building is its most critical component, ensuring stability, safety, and longevity. Selecting the correct type of concrete structural foundations is a decision that depends on various factors, including the structure’s weight, soil conditions, budget, and environmental considerations. Broadly, foundations are categorized into two types: shallow and deep. Each has distinct characteristics, advantages, and applications.

This blog explores the differences between shallow and deep foundations, their cost implications, and the environmental factors that influence their selection. We also discuss how Coloscapes Concrete evaluates project-specific needs to recommend the best foundation solution.

Overview of Foundation Types

Foundations transfer the load of a structure to the ground, ensuring stability and preventing settlement or failure. The two primary types of foundations are:

1. Shallow Foundations
   Shallow foundations are positioned close to the surface and are typically used for lighter structures or stable soil conditions. Examples include:

   • Spread Footings: Distribute the load over a larger area to reduce soil pressure.
   • Strip Footings: Continuous strips supporting load-bearing walls.
   • Mat Foundations: Large slabs that support multiple columns or entire structures.
2. Deep Foundations
   Deep foundations extend far below the surface, transferring loads to more stable soil or bedrock layers. They are used for heavier structures or poor soil conditions. Examples include:

   • Piles: Long, slender columns driven into the ground.
   • Caissons: Large, hollow cylinders filled with concrete, used for heavy loads.
   • Drilled Shafts: Deep holes filled with concrete to provide support.

Both types are essential for different applications, and the choice depends on site-specific conditions and project requirements.

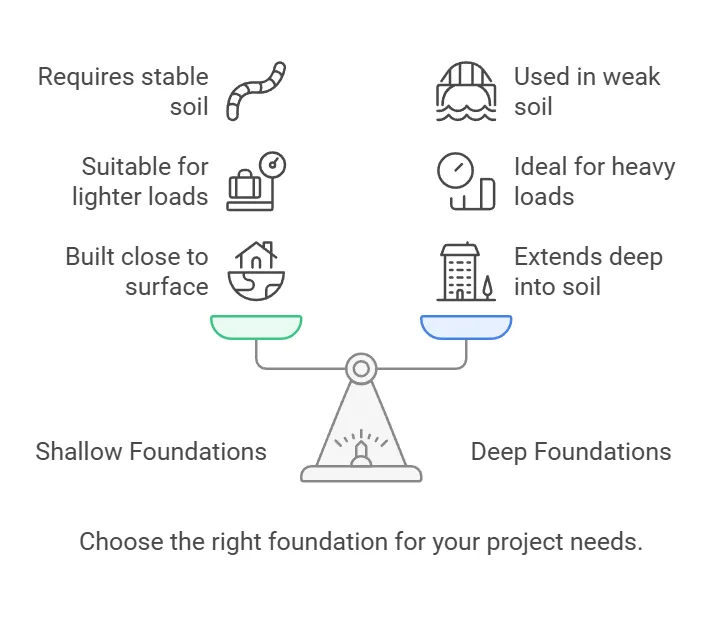

Key Differences and Use Cases

Understanding the differences between shallow and deep foundations helps in selecting the right one for a specific project.

• Shallow Foundations Use Cases: Small to medium-sized buildings on stable soil, such as homes or retail spaces.
• Deep Foundations Use Cases: Skyscrapers, industrial complexes, or structures in seismic zones.

Cost Implications

Cost is a significant factor in foundation design, influencing the choice between shallow and deep foundations.

1. Shallow Foundations

   • Generally more cost-effective due to less excavation and simpler construction.
   • Suitable for projects with tight budgets and stable soil conditions.
   • Example: Spread footings for a residential project can be installed quickly with minimal equipment.
2. Deep Foundations

   • Higher costs due to advanced equipment and labor-intensive processes like drilling or pile driving.
   • Necessary for projects where soil stability is an issue, making the additional expense unavoidable.
   • Example: Piling for a high-rise in poor soil may involve significant investment but ensures safety and stability.

While shallow foundations are usually cheaper, deep foundations offer unmatched reliability for complex projects. Balancing cost with structural requirements is critical.

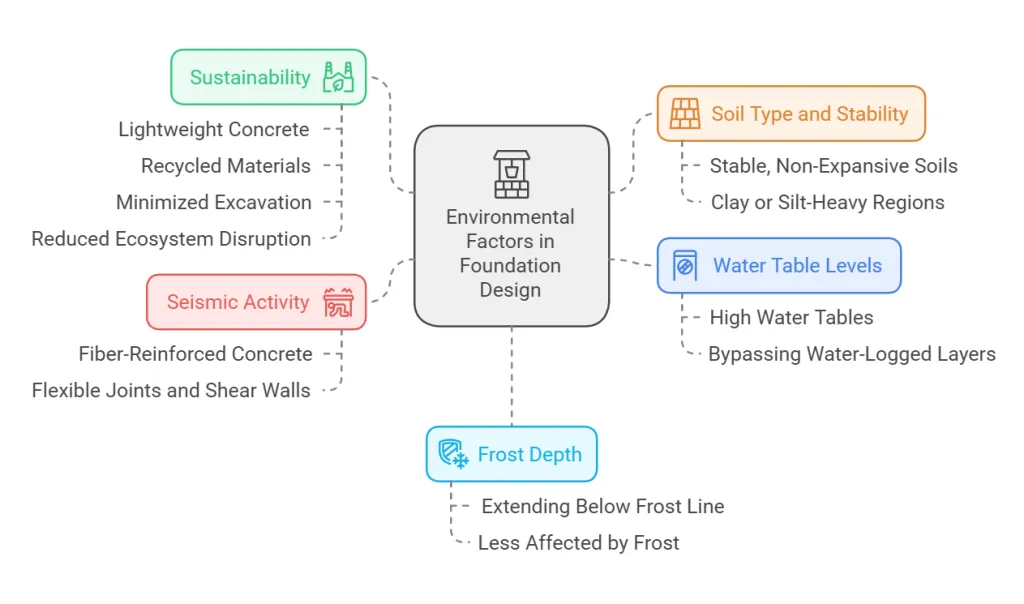

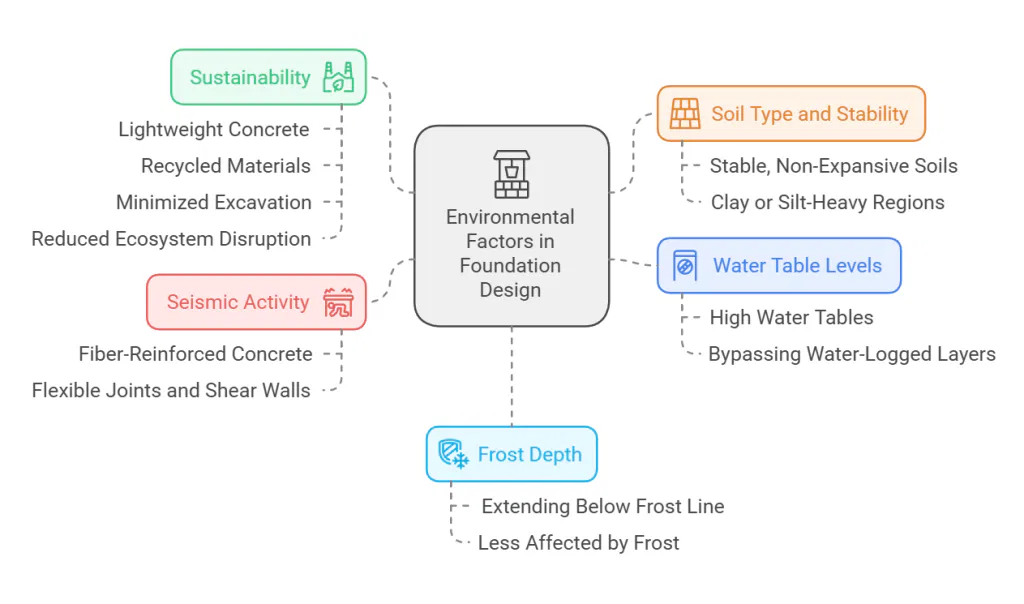

Environmental Factors to Consider

Environmental considerations play a crucial role in foundation design, particularly in adapting to local conditions.

1. Soil Type and Stability

   • Shallow foundations work well with stable, non-expansive soils.
   • Deep foundations are essential in clay or silt-heavy regions prone to settlement or liquefaction.
2. Water Table Levels

   • High water tables can weaken shallow foundations.
   • Deep foundations bypass water-logged soil layers, providing better stability.
3. Seismic Activity

   • Fiber-reinforced concrete in deep foundations offers enhanced resilience in seismic zones.
   • Flexible joints and shear walls improve the earthquake resistance of deep foundation systems.
4. Frost Depth

   • Shallow foundations must extend below the frost line in colder climates to prevent heaving.
   • Deep foundations are less affected by frost.
5. Sustainability

   • Lightweight concrete or recycled materials can reduce the environmental impact of both types of foundations.
   • Proper design minimizes excavation and disruption to local ecosystems.

By addressing these factors, Coloscapes Concrete ensures that its foundation designs are both environmentally responsible and structurally sound.

How Coloscapes Evaluates Project-Specific Needs

At Coloscapes Concrete, every project begins with a comprehensive assessment of site conditions and project requirements. This ensures that the chosen foundation type aligns perfectly with the client’s needs.

1. Soil Analysis
   Geotechnical investigations are conducted to determine soil type, bearing capacity, and moisture content. This data informs the decision to use shallow or deep foundations.

2. Load Calculations
   Engineers calculate the expected loads, including dead loads (structural weight), live loads (occupant activity), and environmental loads (wind, seismic activity).

   • Shallow foundations may suffice for smaller loads.
   • Deep foundations are preferred for larger, more complex structures.
3. Budget Considerations
   Coloscapes collaborates with clients to optimize costs without compromising on quality or safety. For example, choosing high-strength concrete may increase upfront costs but reduces maintenance expenses over time.

4. Environmental Adaptation
   Foundation designs are tailored to withstand regional weather and environmental factors.

   • In colder areas, shallow footings are extended below the frost line.
   • In seismic zones, deep foundations with reinforced materials are prioritized.
5. Advanced Materials and Techniques
   Coloscapes employs innovative materials like fiber-reinforced concrete to enhance foundation durability. Cutting-edge construction methods ensure efficiency and precision.

6. Client Collaboration
   Close collaboration with clients ensures that their unique goals and challenges are addressed. Whether it’s a mid sized project or a  towering commercial skyscraper, Coloscapes delivers tailored solutions.


Choosing between shallow and deep foundations is a critical decision that impacts a building’s stability, cost, and environmental footprint. Shallow foundations are ideal for lighter structures on stable soil, while deep foundations are indispensable for heavy loads and challenging ground conditions.

At Coloscapes Concrete, our expertise ensures that every project benefits from the most suitable foundation type. By combining soil analysis, load assessment, and innovative techniques, we deliver solutions that prioritize safety, longevity, and cost-effectiveness. Contact us today to discuss how we can help with your next foundation project.
